1.Material:
1.1 Housing: LCP/9T
1.2 Contact:C7025,t=0.20/0.25mm
1.3 Shell: SUS304
2.ELECTRICAL:
2-1:CURUENT RATAING:VBUS AND GND CONTACTS RATED AT 1.25A
PARALLELED FOR A TOTAL OF 3A/5A
2-2:INITIAL CONTACT RESISTANCE :40 MEGOHMS
2-3:DIEELECTRIC WITHSTANDING VOLTAGE:100V AC MIN
3.MECHANICAL CHARACTERISTICS:
3-1:MATING FORCE:5~20N
3-2:UNMATING FORCE:8~20N(INITIAL),6~20N(AFTER 10000 CYCLES)
3-3:FREQUENCE:200±50 CYCLES /HOUR,10000 CYCLES
3-4:OPERATING TEMPERATURE;-40*~80*
4.WATER RESISTANCE：IPX7.
详细款式图纸3D模型以下可下载：
|
序号 |
型号 |
规格 |
PDF下载 |
3D下载 |
|
1 |
ZDX-CFLDF162CY06 |
TYPE-C16PIN防水母座立式插件L=7.18MM |
|
|
- 上一篇：无
- 下一篇：TYPE-C6P防水母座立插粉末冶金L=7.15MM
-
TYPE-C12P公头四脚全贴片L=13.18MM -
USB MICRO5PIN母座贴片沉板1.2MM -
2.0USB母座短体90度插板超薄 -

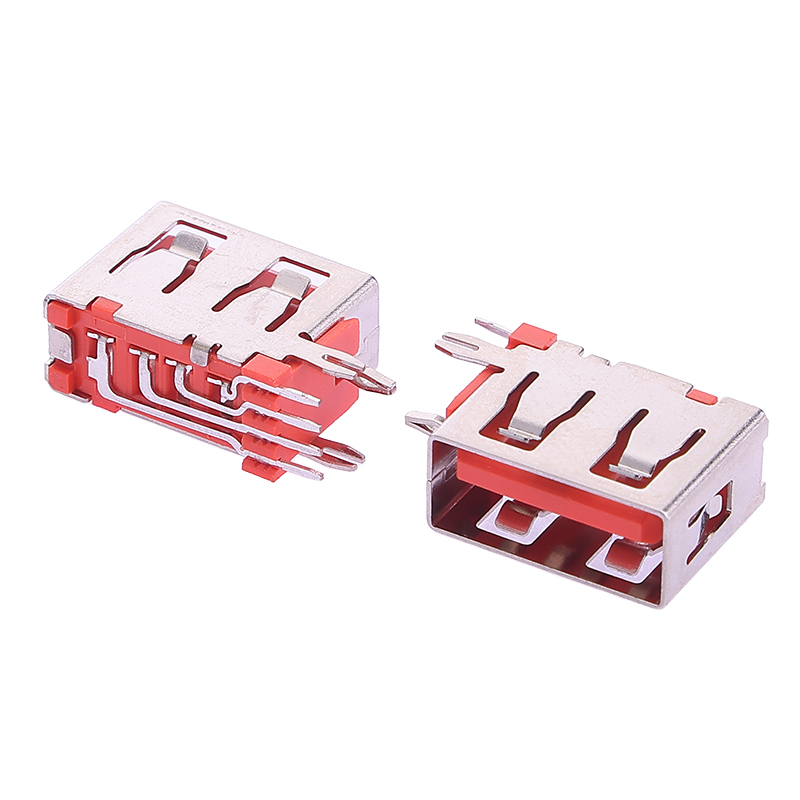

USB2.0 AF母座侧插短体10.0MM -
